Description

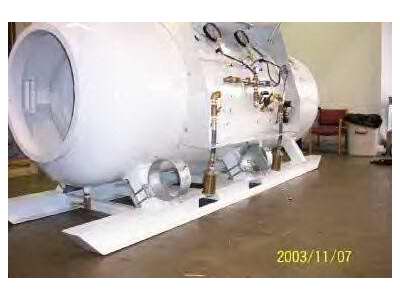

Twin Lock Double Door
Decompression Chambers
Built in accordance with ANSI-ASME/PVHO-1 Safety Standard.The ADC Consensus standards for Commercial Diving Operations,
Meets OSHA 29CFR-1910 & USCG 46CFR-197 requirements,
Complete Documentation Package provided
National Board Registered.
BUILT BY AN ISO-9001 Quality Certified Fabricator.
AVAILABLE IN STANDARD 54" .
Weight 5515 lbs
Length 155"
diameter 55"
Height 76"

CUSTOM SIZES AVAILABLE ON REQUEST.

Double lock Doors (one outside chamber & one on inner chamber)
The Double door entry lock permits a physician or attendant to enter or leave the system during treatment, allowing for treatment of acute patients.
The optional medical lock is a convenient way to pass refreshments or medical supplies in and out of the system.
Equipped Standard Chamber Consists of:
(2 each) 6" 0-225 fsw 0.5% accuracy depth gauges
(1 each )2.5" inlet pressure gauge
(3 each) Sound power phones ***1 phone on outside , 1 phone for the
inner & 1 phone for the outer chamber
Wiring for connecting 2 each Paging speakers to a radio system (intercom system)

***Note: radio (intercom system) & speakers are not included. only wiring is there.
(2 each) Pressure rated electrical penetrators
Extra Heavy Brass plumbing for Pressurization & Exhaust
Aluminum side cover & deck plates
plumbing connections that allows a BIB (built in breather) mask to be connected to a Oxigen tank outside the chamber
Drain valves each lock
Silencers inside and out
The Chamber is designed with:
(2 each) 30" Manways with shipping dogs for doors
(4 each) 8" viewports (1 in entrance, 3 in main lock)
(23 each) Stainless steel penetrators (NPT)
Heavy "I" beam skid with forklift slots
Lifting Lugs for crane handling
Painted inside & out with epoxy over Zinc primer
Aluminum Deck plates

AVAILABLE OPTIONS:
Note: Below items are extra cost and optional items that we can
include in the chamber
BIB (built in breather) masks Standard & Overboard Dump
Radio (intercom) for paging system
Bunk/Mattress
Chamber & Bunk Lights
Cassion Gauges
CO-2 Scrubber
Medical Lock
***The optional medical lock is a convenient way to pass refreshments and medical supplies in and out of the system.
Stainless overlay or Nickel plated sealing surfaces
Viewport covers
Bottle rack
Custom outfitting
Air compressor
volume tank
Fire Extinguisher
