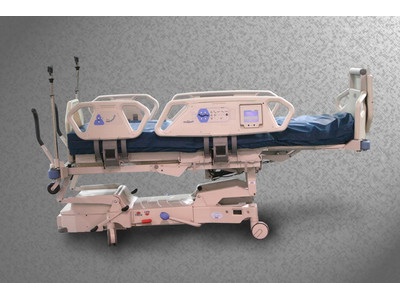

Hill-Rom TotalCare Beds with Scale/air

Ad Number:

2759

Date Posted:

10/19/2009

Contact:

Byron Wurdeman
500 W. Kapp St
Dobson, NC 27017

Telephone:

800-433-3255

Website:

http://www.piedmontmedicalinc.com

Description
Hill-rom TotalCare Hospital Beds with Scales and Air! Completely Reconditioned! Call for a quote today! We do the work! Buy Direct!!

Specs:
HEIGHT–From Floor to Top of Articulating Deck (bottom of mattress) in Low Position Between stepped sides: 14.5-15.5" (36.8-39.4 cm)
HEIGHT–From Floor to Top of Articulating Deck (bottom of mattress) in High Position: 92" (233.7 cm)
MINIMUM UNDER BED CLEARANCE: 1.75" (4.45 cm)
MINIMUM CLEARANCE between articulating deck foot section and the floor for any bed position, except the tilt-table and the chair egress positions with the foot section at 90°: 2.0" (5.1 cm)
OVERALL WIDTH–Siderails Raised: 40" (101.6 cm)
OVERALL WIDTH–Siderails Lowered: 36.5" (92.7 cm)
OVERALL WIDTH–Distance between Casters: 25.5" (64.8 cm)
OVERALL LENGTH: 91.5" (232.4 cm)
OVERALL LENGTH–Roller Bumpers Installed: 92.5" (235.0 cm)
OVERALL LENGTH–Transport Shelf Installed: 93.5" (237.5 cm)
OVERALL FOOT SECTION WIDTH: 28.88-29.13" (73.36-73.99 cm)
FULLY EXTENDED Length of the Foot Section from pivot to inside of the footboard: 26.75-27.25" (67.95-69.22 cm)
ARTICULATING DECK LENGTH: 81.75-82.25" (67.95-69.22 cm)
MAXIMUM HEAD ELEVATION: 75°
MAXIMUM KNEE ELEVATION: 20°
MAXIMUM FOOT ELEVATION: 85° down
MAXIMUM FOOT RETRACT: 12" (30 cm)
MAXIMUM TRENDELENBURG: 12°
MAXIMUM REVERSE TRENDELENBURG: 12°
MAXIMUM EMERGENCY TRENDELENBURG: 20°
BED SAFE WORKING LOAD (patient and equipment): 500 lb (226 kg)
BED WEIGHT WITH MINIMUM OPTIONS: 525 lb (238 kg)
BED WEIGHT WITH MAXIMUM OPTIONS: 566 lb (257 kg)
SHORT STAY SURFACE WEIGHT: 36 lb (16 kg)
TREATMENT SURFACE WEIGHT: 25 lb (11 kg)
